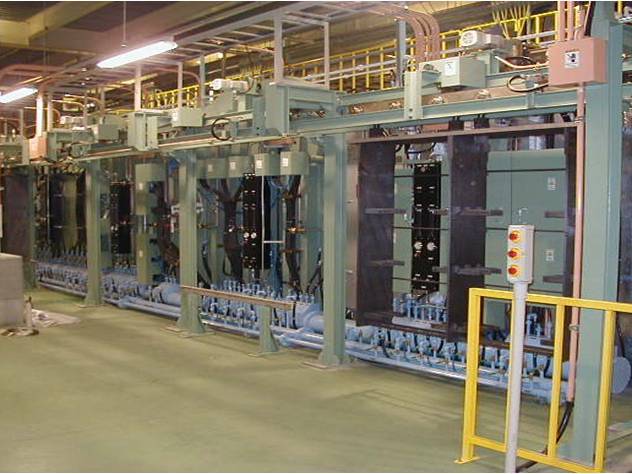

连续真空钎焊炉
连续真空钎焊炉
连续真空钎焊炉
Continuous Vacuum Brazing Furnace
产品应用
Applications
适用于用镍、铜、银、钛等焊料钎焊不锈钢、碳钢、紫铜、高温合金、钛合金等材料 以及铝热交换器、雷达平板天线等铝合金器件的真空钎焊
It is used for Ni, Cu, Ag, Ti and other welding material, brazing of stainless steel, carbon steel, red cooper, high temperature alloy, titanium alloy and the vacuum brazing of aluminum heat exchanger, radar planar antenna and other aluminum alloy components.
|
型号Model |
Trial material |
加热室温度Temperature of heat treatment chamber |
特点 Features |
室数 Chamber |
构成Composition |
||
|
均温区尺寸Soaking zone W×H×Lmm |
承载Loading capacitykg |
||||||
|
低温钎焊Low temp. |
VBC-312 |
300×1200×900 |
60 |
额定Maximum: 700℃ 均热性Soaking property: 600℃&±3℃ |
多室自由组合 多区温度控制 可有立脱脂 升温快节约能源 记忆式温度测定Multi Chambers Free Combination Multi Zones Temperature Control Independent Degreasing Options Rapid Heating and Saving Energy Memory Type Temperature Measuring Instrument |
1 |
钎焊 Brazing |
|
VBC-318 |
300×1800×1200 |
160 |
3 |
预热+钎焊+取出 Preheating +Brazing+Gathering |
|||
|
VBC-324 |
300×2400×1000 |
300 |
4 |
预热+脱脂+钎焊+取出Preheating+Degreasing+Brazing+Gathering |
|||
|
VBC-412 |
400×1200×900 |
80 |
6 |
预热+脱脂+预热+钎焊+放冷+取出Preheating+Degreasing+Preheating+Brazing+Cooling+Gathering |
|||
|
VBC-418 |
400×1800×1200 |
200 |
2 |
插入、取出+钎焊Charging,Gathering+Brazing |
|||
|
VBC-424 |
400×2400×1800 |
400 |
3 |
预热+钎焊+强冷Preheating+Brazing+Compulsive Cooling |
|||
|
高温钎焊High temp. |
VBC-212 |
250×1200×900 |
200 |
额定Maximum: 1200℃ 均热性Soaking property: 1150℃&±5℃ |
4 |
预热+脱脂+钎焊+强冷Preheating+Degreasing+Brazing+Compulsive Cooling |
|
|
VB-217 |
250×1700×900 |
300 |
5 |
预热+脱脂+钎焊+放冷+强冷Preheating+Degreasing+Brazing+Cooling+Compulsive Cooling |
|||
