真空高压气淬炉
真空高压气淬炉
真空高压气淬炉

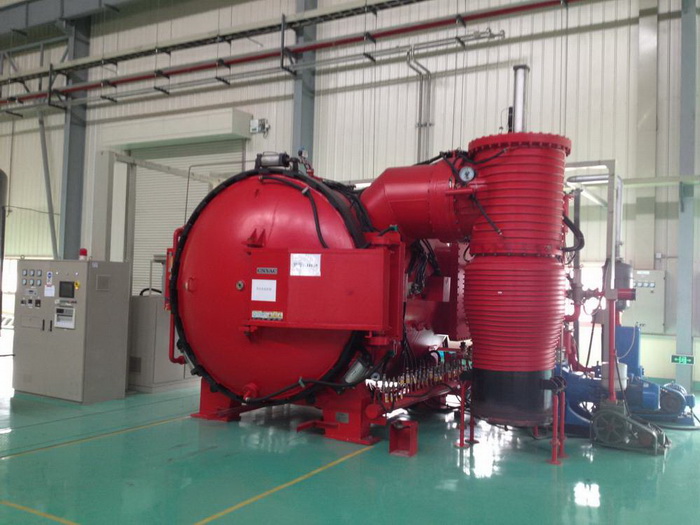

Vacuum high pressure gas quenching furnace
产品应用
Applications
完成工具钢、模具钢、高速钢,高碳高铬钢等材料的淬火处理，,也可用于不锈钢、钛合金、高温合金钢等的真空热处理和真空钎焊等。
Complete the tool steel, mould steel, high speed steel, high carbon and high chrome steel and other materials quenching treatment, and also used for vacuum heat treatment or vacuum brazing of stainless steel, Ti alloy, high temperature alloy etc.
|
额定温度Max temperature℃ |
1300 |
|
工作温度Operating temperature℃ |
550~1250 |
|
均温性Temperature uniformity℃ |
&±5 |
|
极限真空Ultimate vacuumPa |
2*10-3或0.3 |
|
压升率Pressure rising rate Pa/h |
0.4 |
|
淬火压力Quenching pressurePa |
1、0MPa或0.6MPa |
|
型号Model |
承重Capacity (kg) |
均温区尺寸Working Area W×H×L(mm) |
功率Power (kW) |
|
VHQ-449 |
200 |
400×400×600 |
120 |
|
VHQ-669 |
500 |
600×600×900 |
180 |
|
VHQ-8812 |
800 |
800×800×1200 |
300 |
|
VHQ-1015 |
1200 |
1000×1000×1500 |
420 |
