热电偶测温线
概述

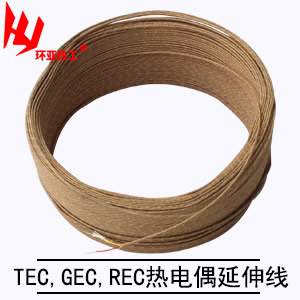

TEC、GEC、REC热电偶延长线特点24AWG的PFA涂层或玻璃纤维线在10和25英尺长度的绞线，弹簧线的拉伸比率是1:5，成型快速断开或低成本的微型热电偶连接，J型，K，T和E分度号供选。TEC、GEC、REC热电偶延长线常用型号TECJ10-2 、TECK25-9 、GECJ10-2 、GECJ25-1 、RECJ1-10 、RECJ4-9。
TEC、GEC、REC热电偶延长线 包含型号
PFA特氟龙绝缘：
TECJ10-(*) 3 m (10')
TECJ25-(*) 7、5 m (25')
TECK10-(*) 3 m (10')
TECK25-(*) 7、5 m (25')
TECT10-(*) 3 m (10')
TECT25-(*) 7、5 m (25')
TECE10-(*) 3 m (10')
TECE25-(*) 7、5 m (25')
玻璃纤维绝缘：
GECJ10-(*) 3 m (10')
GECJ25-(*) 7、5 m (25')
GECK10-(*) 3 m (10')
GECK25-(*) 7、5 m (25')
GECT10-(*) 3 m (10')
GECT25-(*) 7、5 m (25')
GECE10-(*) 3 m (10')
GECE25-(*) 7、5 m (25')
弹簧线：
RECJ1-(*) 30 cm (1')
RECJ4-(*) 120 cm (4')
RECK1-(*) 30 cm (1')
RECK4-(*) 120 cm (4')
RECT1-(*) 30 cm (1')
RECT4-(*) 120 cm (4')
RECE1-(*) 30 cm (1')
RECE4-(*) 120 cm (4')
TEC、GEC、REC热电偶延长线选型说明
（1）（2）（3）（4） | |
选项描述 | |
（1） | 类型 |
TEC fPFA Coated Wire GEC fGlass Braid Wire REC fRetractable | |
（2） | 标准 |
J fJ type (Iron-Constantan) K fK type (CHROMEGA?-ALOMEGA?) T fT type (Copper-Constantan) E fE type (CHROMEGA?-Constantan) | |
（3） | 长度 |
1 f1 ft retracted length(fREC cable only) 4 f4 ft. retracted length(fREC cable only) 10 f10 ft. (GEC TEC cable only) 25 f25 ft. (GEC TEC cable only) | |
（4） | 连接代码 |
1 fConnect#1 OSTW female Connect#2 OSTW female 2 fConnect#1 OSTW female Connect#2 OST male 3 fConnect#1 OSTW female Connect#2 SMPW female 4 fConnect#1 OSTW female Connect#2 SMP male 5 fConnect#1 OST male Connect#2 OST male 6 fConnect#1 OST male Connect#2 SMPW female 7 fConnect#1 OST male Connect#2 SMP male 8 fConnect#1 SMPW female Connect#2 SMPW female 9 fConnect#1 SMPW female Connect#2 SMP male 10 fConnect#1 SMP male Connect#2 SMP male 11 fConnect#1 OSTW female Connect#2 Stripped Leads 12 fConnect#1 OST male Connect#2 Stripped Leads 13 fConnect#1 SMPW female Connect#2 Stripped Leads 14 fConnect#1 SMP male Connect#2 Stripped Leads 15 fConnect#1 OSTW female Connect#2 Spade lug 16 fConnect#1 OST male Connect#2 Spade lug 17 fConnect#1 SMPW female Connect#2 Spade lug 18 fConnect#1 SMP male Connect#2 Spade lug | |
订货需知：
1、 交货长度为100m或整数倍，允许有不短于20m的短段导线交货，但数量不得超过交货总量的10％。
2、 规格，型号，屏蔽，高温，多股，外皮材料等。
3、 本公司生产热电偶用补偿电缆，供多点测温使用。
4、 用户如有特殊需求，可在订货合同中注明。
